Optimizing Incense Drying with MeiYa Heat Pump Dryer Technology​

The Importance of Precision in Incense Drying​​
Incense production relies heavily on controlled drying to preserve fragrance integrity, structural stability, and visual appeal. Traditional sun-drying methods often lead to uneven moisture removal, color fading, and susceptibility to weather disruptions. These challenges result in brittle textures, irregular shapes, and compromised product value—issues that demand a modern technological solution.

​​MeiYa Heat Pump Dryer: Redefining Efficiency​​
MeiYa Air Energy Heat Pump Dryers offer a revolutionary approach with three core advantages:

1. ​​Precision Climate Control​​
   Advanced sensors maintain ±1°C temperature accuracy and ±5% humidity stability, eliminating cracks and warping.
2. ​​Energy-Smart Operation​​
   COP ratings up to 4.2 reduce energy consumption by 60% compared to conventional electric heating systems.
3. ​​Non-Destructive Drying​​
   Indirect heat exchange technology prevents active ingredient degradation while inhibiting mold/bacterial growth.
4. ​​24/7 Automated Process​​
   PLC programming enables unattended operation with real-time moisture tracking and remote adjustments via IoT.

​​Phased Drying Protocol for Premium Quality​​
Stage 1: Gentle Dehydration (45°C, 60% RH | 5-6 Hours)

• Stabilizes incense geometry through gradual moisture release
• Preserves volatile aromatic compounds
• Prevents surface hardening

Stage 2: Intensive Drying (50°C | 3 Hours)

• Accelerates core moisture extraction
• Maintains ≤2% diameter shrinkage rate
• Ensures uniform density

Stage 3: Final Conditioning (55°C | Until Target Moisture)

• Achieves ideal 8-12% residual moisture content
• Enhances structural rigidity
• Prepares for immediate packaging

​​Traditional vs. MeiYa Drying Comparison​​

Factor	Sun-Drying	MeiYa Heat Pump
Weather Dependency	High	None
Labor Intensity	8-10 manual checks	Fully automated
Defect Rate	15-20%	<3%
Energy Cost/Ton	$38	$14
Batch Consistency	Variable	98% uniformity

​​Conclusion​​
MeiYa’s heat pump technology transforms incense manufacturing by delivering pharmaceutical-grade process control at industrial production scales. With 72 documented quality improvements over traditional methods, our systems currently support 160+ incense producers across 18 countries in achieving:

• 40% faster drying cycles
• 25% higher market value for premium-grade products
• 80% reduction in post-drying defects

​​Engineer Better Fragrance Today​​
Request your customized drying profile or schedule a virtual demo:
📧 [email protected]*
📞 *Ray Ren, Drying Solutions Specialist
📱 +86 133 4676 7871 (WhatsApp/WeChat)

MeiYa Heat Pump Dryer Machine

1. No MOQ & Customization Unlimited
2. Drying + Dehumidify + Cooling
3. PLC + Touch Screen Control
4. 7-10 Days Delivery Time

Parameter:

Single dryer+drying chamber
Model	Unit	MY-03RD	MY-06RD	MY-12RD
Power input	KW	5.5	9.5	19.4
power supply	V/PH/HZ	380V/3PH,50/60HZ	380V/3PH,50/60HZ
		220V/1PH,50/60HZ
Rated current	A	9.6A(380V),22A(220V)	17.0	30.0
Heating capacity	KW	10.5	21.0	42.0
Cooling capacity	KW	7.8	18.0	32.0
Dehumidity	L/H	12.0	25.0	50.0
Max temperature	℃	≤75	≤75	≤75
Working condition	℃	0-43	0-43	0-43
Electric shock protection grade		1	1	1
Max exhause pressure	M(P)a	30	30	30
Noise	d(B(A	75	75	75
Power consumption/H	KWH	4.8	8.5	15.0
Electric heater	KW	3.0	6.0	12.0
Blowing type	/	HORIZONTAL BLOWING TYPE
Demsnssion of dryer	MM	1650*856*1280	1806*1065*1280	2089*1260*1580
Weight	KG	180	285	480

Buying Guiding:

Recommend drying machine+Drying chamber sizes

Model	Description	Drying Capacity (Per Batch)	Drying Room Size (mm)	Trolleys Number	Trays Number
MY-01RD-16L	All-in-one Machine	Up to 100Kg	All-in-one		16
MY-01RD-36L	All-in-one Machine	Up to 250Kg	All-in-one		36
MY-03RD-60L	All-in-one Machine	Up to 400Kg	All-in-one		60
MY-03RD	1 Unit + 1 Drying Room	Up to 700Kg	3200*2190*2200	8	128
MY-06RD	1 Unit + 1 Drying Room	Up to 1300Kg	6150*2190*2200	14	224
MY-12RD	1 Unit + 1 Drying Room	Up to 2000Kg	6350*3230*2200	20	320
MY-15RD	1 Unit + 1 Drying Room	Up to 2200Kg	6350*3230*2200	20	320
MY-03RD (Double)	2 Units + 1 Drying Room	Up to 1700Kg	7050*2190*2200	16	256
MY-06RD (Double)	2 Units + 1 Drying Room	Up to 2500Kg	10100*2190*2200	24	384
MY-12RD (Double)	2 Units + 1 Drying Room	Up to 4400Kg	11860*3230*2200	40	640
MY-15RD (Double)	2 Units + 1 Drying Room	Up to 5200Kg	11860*3230*2200	40	640

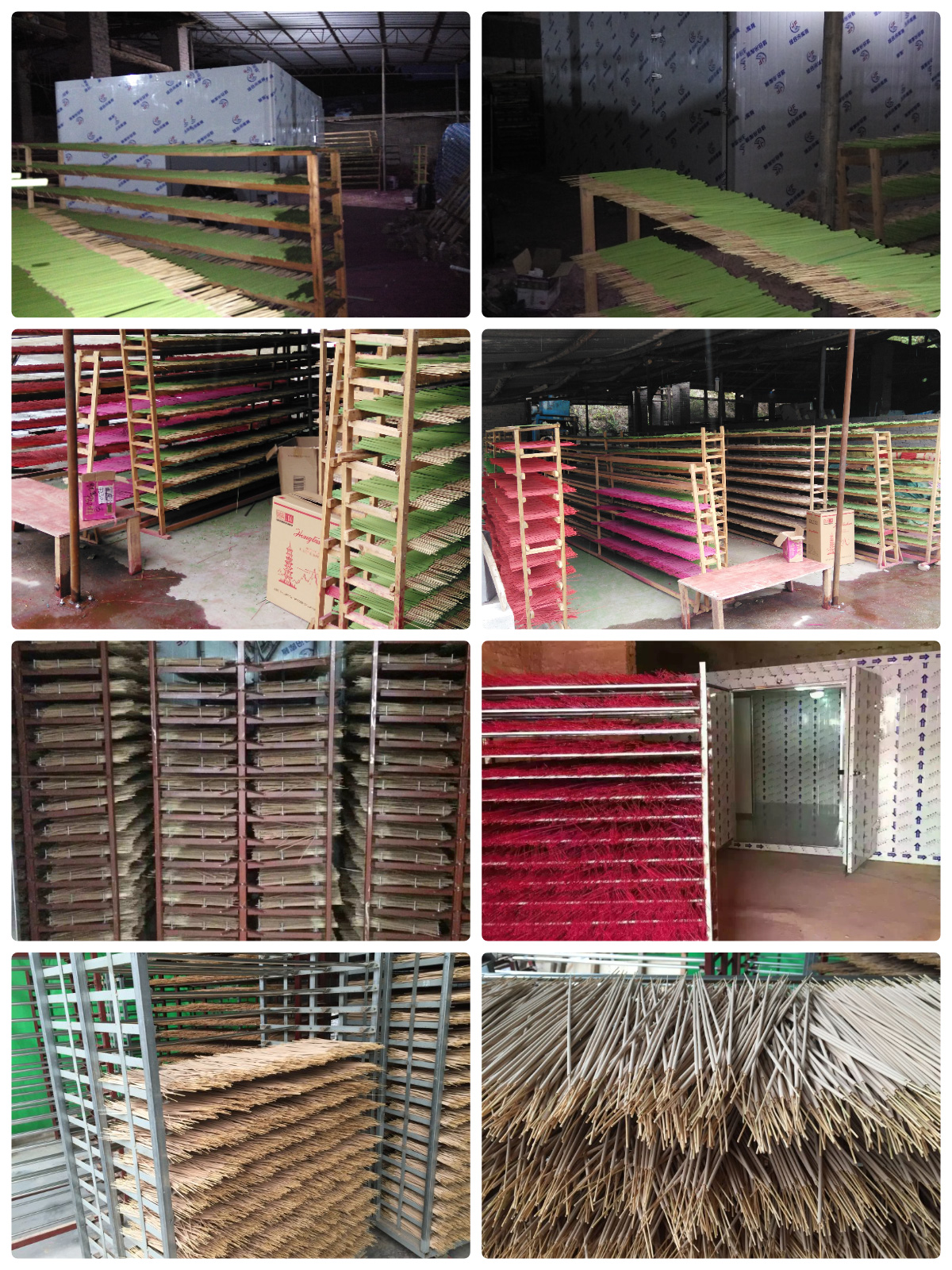

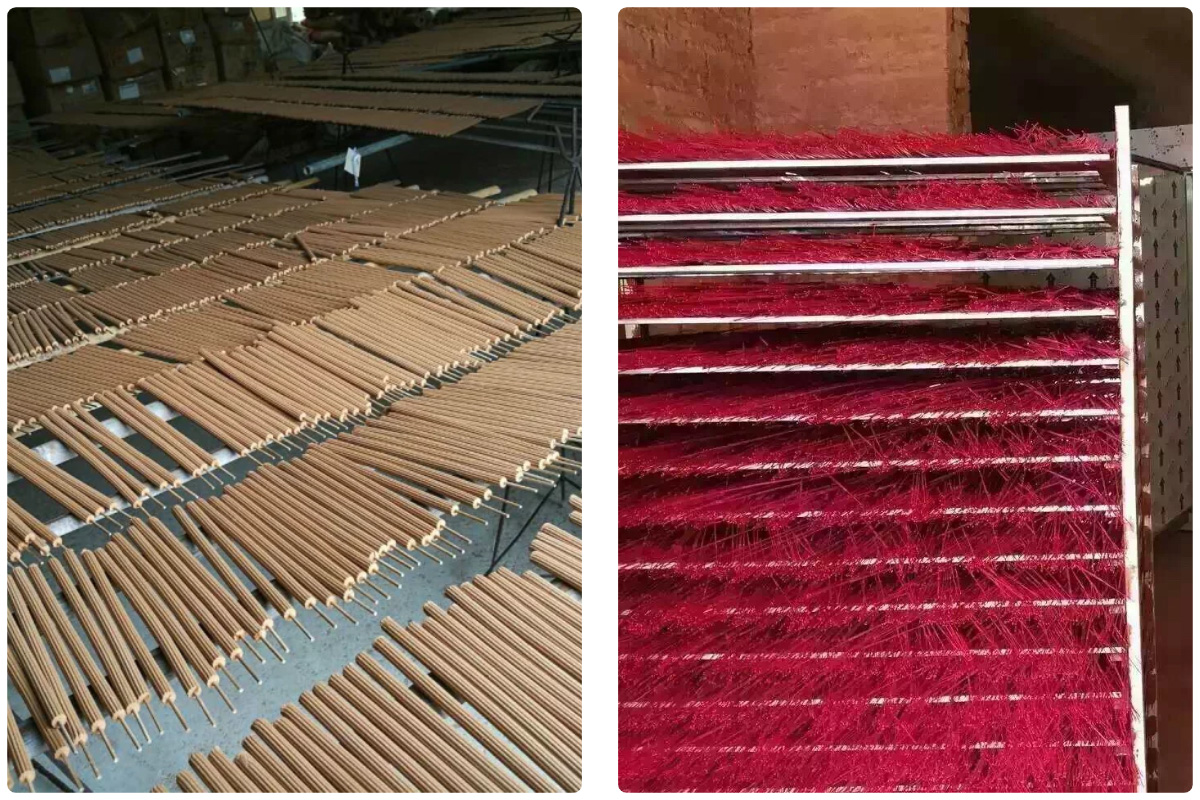

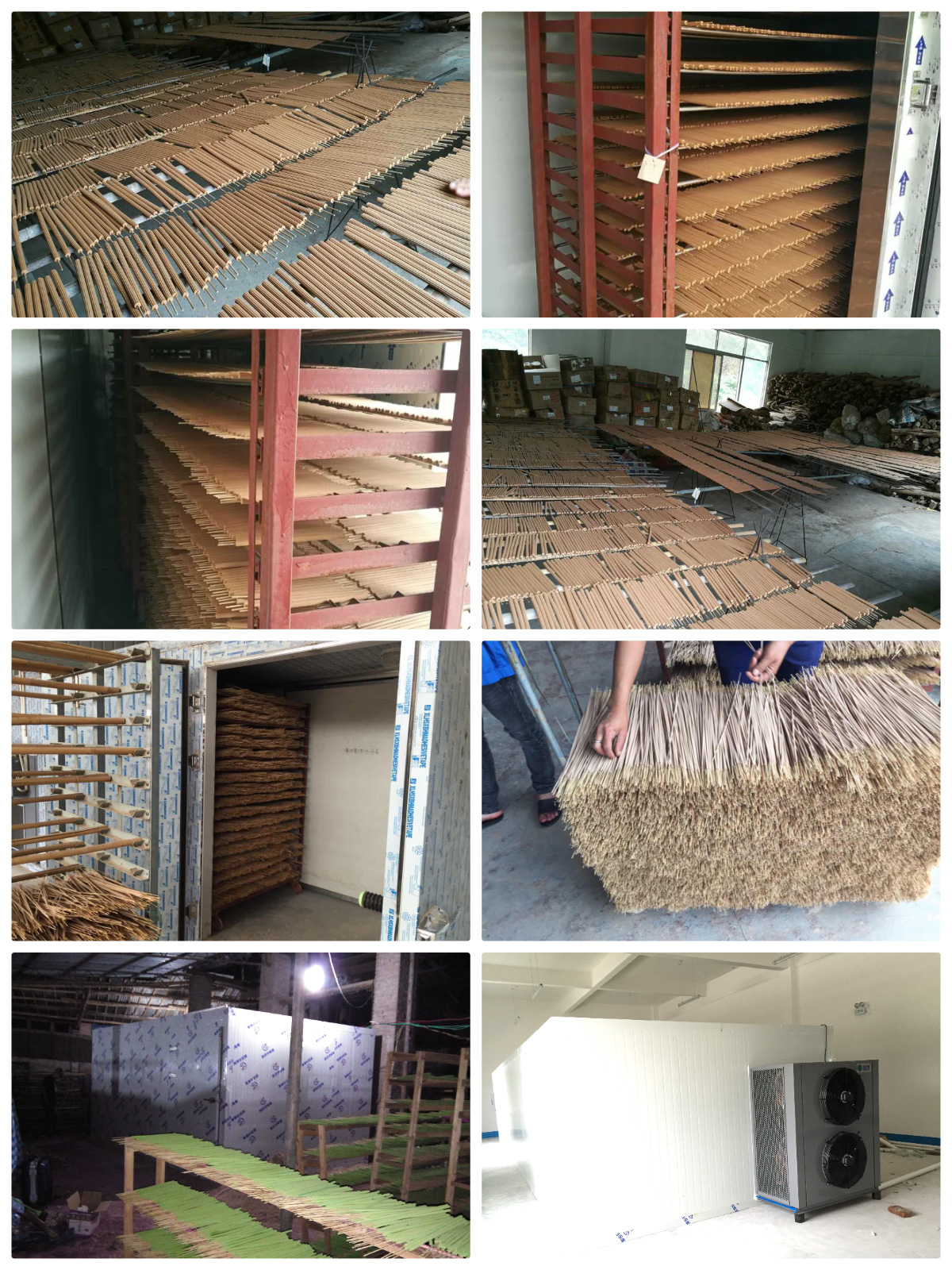

Our Projects:

Our Factory:

Production Processing:

Drying Machine Components:

Standard Working Modes:

• Typically ​3 modes available:
  • ​Drying Only
    • Rapid temperature rise; ​unable to discharge moist air
  • ​Drying + Dehumidify
    • Chamber temperature rises ​while discharging moist air
  • ​Cooling
    • Temperature can ​drop to 10°C (minimum)
  • Important Note:
    • If temperature control becomes unstable, ​switch to Temperature & Humidity Mode.

---
