Optimized Andrographis paniculata (Chuanxinlian) Drying Solutions with MeiYa Heat Pump Technology​

Introduction to Andrographis paniculata Drying

Andrographis paniculata , a revered herb in traditional medicine, requires precise drying to preserve its active compounds like andrographolides. Traditional sun-drying methods risk contamination and inconsistent quality, while conventional thermal drying often degrades heat-sensitive bioactive components. MeiYa Air Source Heat Pump Dryers address these challenges through intelligent temperature-humidity control, ensuring pharmaceutical-grade drying outcomes while maintaining GMP compliance.

MeiYa Heat Pump Dryer Advantages

1. ​​Energy Efficiency Redefined​​
   Utilizing reverse Carnot cycle technology, MeiYa dryers recover 85% of latent heat – consuming only 25% of the energy required by conventional dryers. Our dual-stage dehumidification system maintains optimal drying conditions even in high-humidity environments.
2. ​​Precision Phytochemical Preservation​​
   Patented PID control maintains temperatures at 35-45°C (±0.5°C) with relative humidity stabilized between 15-25%, preventing thermal degradation of bitter glycosides while achieving 12% moisture content uniformity.
3. ​​Smart Automation​​
   IoT-enabled systems automatically adjust drying parameters through 6-stage programs. Real-time moisture sensors eliminate manual sampling, reducing labor costs by 70% compared to traditional methods.

Phase-Controlled Drying Protocol

​​Phase 1: Pre-Treatment​​

• Sort leaves/stems within 2hrs post-harvest
• Initial moisture reduction to 35% using 38°C air circulation

​​Phase 2: Primary Drying (0-18hrs)​​

• Progressive temperature ramp: 40°C → 43°C
• Airflow velocity: 1.2-1.5m/s (horizontal laminar flow pattern)
• Continuous dehumidification to 20% RH

​​Phase 3: Final Conditioning (18-24hrs)​​

• Temperature stabilization at 45°C
• Moisture equilibrium control (MEC) system activation
• Final product moisture: 8-12%

​​Post-Processing​​
Automated cooling to ambient temperature before nitrogen-flushed packaging.

Performance Comparison

Parameter	Traditional Methods	MeiYa Dryers
Drying Cycle	48-72hrs	24hrs
Energy Cost	$1.2/kg	$0.28/kg
Labor Requirement	Continuous monitoring	Fully automated
Color Retention	60-75%	92-95%
Andrographolide Content	2.1-2.4%	2.8-3.2%

Conclusion

MeiYa’s pharmaceutical-grade drying solutions enhance Andrographis paniculata quality while achieving 62% operational cost reduction. Our modular dryers accommodate batches from 600kg (MY-HP700 model) to 1,200kg (MY-HP1400) fresh material, with optional GACP-compliant control systems for export-grade production.

---

​​Contact Our Drying Specialists​​
Email: [email protected]
Project Consultant: Ray Ren
WhatsApp/WeChat/Mobile: +86 133 4676 7871

MeiYa Heat Pump Dryer Machine

1. No MOQ & Customization Unlimited
2. Drying + Dehumidify + Cooling
3. PLC + Touch Screen Control
4. 7-10 Days Delivery Time

Parameter:

Single dryer+drying chamber
Model	Unit	MY-03RD	MY-06RD	MY-12RD
Power input	KW	5.5	9.5	19.4
power supply	V/PH/HZ	380V/3PH,50/60HZ	380V/3PH,50/60HZ
		220V/1PH,50/60HZ
Rated current	A	9.6A(380V),22A(220V)	17.0	30.0
Heating capacity	KW	10.5	21.0	42.0
Cooling capacity	KW	7.8	18.0	32.0
Dehumidity	L/H	12.0	25.0	50.0
Max temperature	℃	≤75	≤75	≤75
Working condition	℃	0-43	0-43	0-43
Electric shock protection grade		1	1	1
Max exhause pressure	M(P)a	30	30	30
Noise	d(B(A	75	75	75
Power consumption/H	KWH	4.8	8.5	15.0
Electric heater	KW	3.0	6.0	12.0
Blowing type	/	HORIZONTAL BLOWING TYPE
Demsnssion of dryer	MM	1650*856*1280	1806*1065*1280	2089*1260*1580
Weight	KG	180	285	480

Buying Guiding:

Recommend drying machine+Drying chamber sizes

Model	Description	Drying Capacity (Per Batch)	Drying Room Size (mm)	Trolleys Number	Trays Number
MY-01RD-16L	All-in-one Machine	Up to 100Kg	All-in-one		16
MY-01RD-36L	All-in-one Machine	Up to 250Kg	All-in-one		36
MY-03RD-60L	All-in-one Machine	Up to 400Kg	All-in-one		60
MY-03RD	1 Unit + 1 Drying Room	Up to 700Kg	3200*2190*2200	8	128
MY-06RD	1 Unit + 1 Drying Room	Up to 1300Kg	6150*2190*2200	14	224
MY-12RD	1 Unit + 1 Drying Room	Up to 2000Kg	6350*3230*2200	20	320
MY-15RD	1 Unit + 1 Drying Room	Up to 2200Kg	6350*3230*2200	20	320
MY-03RD (Double)	2 Units + 1 Drying Room	Up to 1700Kg	7050*2190*2200	16	256
MY-06RD (Double)	2 Units + 1 Drying Room	Up to 2500Kg	10100*2190*2200	24	384
MY-12RD (Double)	2 Units + 1 Drying Room	Up to 4400Kg	11860*3230*2200	40	640
MY-15RD (Double)	2 Units + 1 Drying Room	Up to 5200Kg	11860*3230*2200	40	640

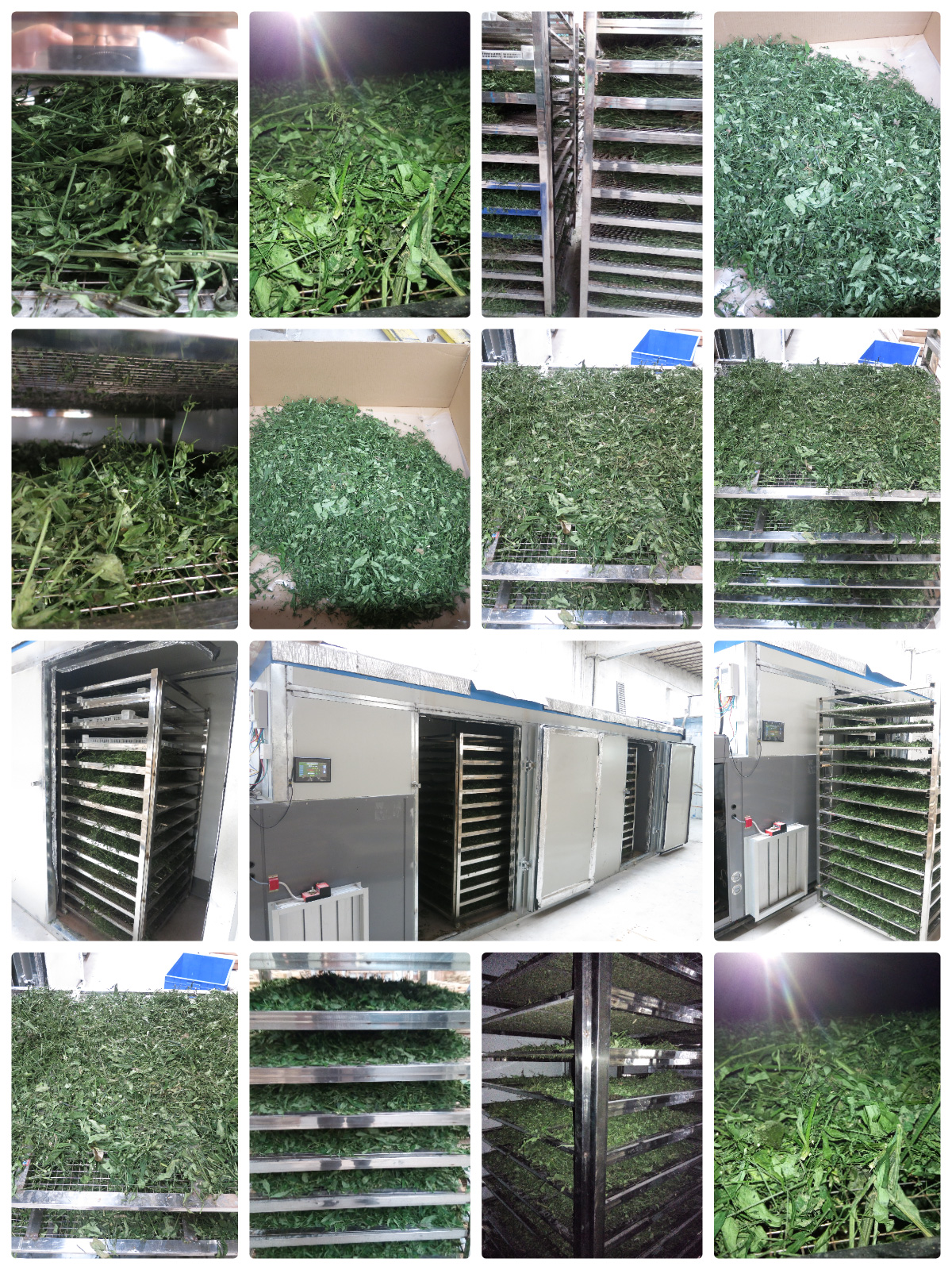

Our Projects:

Our Factory:

Production Processing:

Drying Machine Components:

Standard Working Modes:

• Typically ​3 modes available:
  • ​Drying Only
    • Rapid temperature rise; ​unable to discharge moist air
  • ​Drying + Dehumidify
    • Chamber temperature rises ​while discharging moist air
  • ​Cooling
    • Temperature can ​drop to 10°C (minimum)
  • Important Note:
    • If temperature control becomes unstable, ​switch to Temperature & Humidity Mode.

---
