Introduction
Noodle drying is a critical step in production, directly impacting texture, shelf life, and overall quality. Traditional drying methods, such as open-air sun drying or conventional hot-air systems, often struggle with inconsistent temperature control, high energy consumption, and susceptibility to environmental factors. MeiYa Air Source Heat Pump Dryers revolutionize this process by offering a sustainable, energy-efficient solution with unparalleled precision. Designed for modern noodle manufacturers, MeiYa ensures uniform drying, reduced breakage rates, and compliance with food safety standards—all while minimizing operational costs.
Advantages of MeiYa Heat Pump Dryers
- Energy Efficiency: MeiYa’s heat pump technology recovers waste heat, reducing energy consumption by up to 60% compared to traditional methods.
- Precision Control: Advanced humidity and temperature sensors enable real-time adjustments, eliminating over-drying or under-drying risks.
- Automated Workflow: Minimize manual intervention with programmable drying curves and remote monitoring capabilities.
- Eco-Friendly: Zero emissions and low noise operation align with global sustainability goals.
Step-by-Step Noodle Drying Process with MeiYa
MeiYa’s 4-stage drying protocol ensures optimal moisture removal while preserving noodle integrity:
Stage 1: Cold Air Shaping (20–25°C, 55–56% RH)
- Objective: Initial moisture evaporation and shape stabilization.
- Process: Gentle cold air circulates to prevent surface cracking. MeiYa’s intelligent airflow system maintains stable humidity (55–56%) without external heating.
- Duration: 30–40 minutes.
Stage 2: Humidity-Controlled Conditioning (30–35°C, 75–85% RH)
- Objective: Promote internal moisture migration while preventing surface hardening.
- Process: Gradual temperature increase creates a moisture gradient. MeiYa’s humidity retention technology ensures uniform diffusion, critical for avoiding brittleness.
- Duration: 30–40 minutes.
Stage 3: Accelerated Drying (35–45°C, 54–65% RH)
- Objective: Rapid yet controlled moisture reduction.
- Process: High-temperature, low-humidity conditions efficiently evaporate residual water. MeiYa’s dual-heat recovery system prevents thermal shock, ensuring noodles retain elasticity.
- Duration: 90 minutes.
Stage 4: Cooling & Stabilization (26–28°C, 50–60% RH)
- Objective: Final moisture balancing and temperature adjustment.
- Process: Slow cooling minimizes stress on the noodle structure. MeiYa’s automated ventilation maintains ambient conditions, achieving the target moisture content (<12.5%).
- Duration: 90 minutes.
Why Choose MeiYa Over Traditional Drying?
- Consistency: Traditional sun drying exposes noodles to dust, pests, and weather fluctuations. MeiYa guarantees a controlled environment.
- Speed: Complete drying in 4–5 hours vs. days required for natural methods.
- Quality: Reduced breakage (<2%) and enhanced chewiness due to precision humidity management.
Conclusion
MeiYa Air Source Heat Pump Dryers redefine noodle production with a blend of innovation and reliability. By integrating intelligent controls, energy-saving technology, and a science-backed drying process, MeiYa empowers manufacturers to achieve premium product quality while cutting operational costs.
Contact MeiYa Today for Your Customized Drying Solution!
📧 Email: [email protected]
📞 Contact: Ray Ren
📱 WhatsApp/WeChat/Mobile: +86 133 4676 7871
Upgrade to MeiYa—Where Technology Meets Tradition.



MeiYa Heat Pump Dryer Machine
- No MOQ & Customization Unlimited
- Drying + Dehumidify + Cooling
- PLC + Touch Screen Control
- 7-10 Days Delivery Time
Parameter:
| Single dryer+drying chamber | ||||
| Model | Unit | MY-03RD | MY-06RD | MY-12RD |
| Power input | KW | 5.5 | 9.5 | 19.4 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 32.0 |
| Dehumidity | L/H | 12.0 | 25.0 | 50.0 |
| Max temperature | ℃ | ≤75 | ≤75 | ≤75 |
| Working condition | ℃ | 0-43 | 0-43 | 0-43 |
| Electric shock protection grade | 1 | 1 | 1 | |
| Max exhause pressure | M(P)a | 30 | 30 | 30 |
| Noise | d(B(A | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING TYPE | ||
| Demsnssion of dryer | MM | 1650*856*1280 | 1806*1065*1280 | 2089*1260*1580 |
| Weight | KG | 180 | 285 | 480 |
Buying Guiding:
Recommend drying machine+Drying chamber sizes
| Model | Description | Drying Capacity (Per Batch) | Drying Room Size (mm) | Trolleys Number | Trays Number |
| MY-01RD-16L | All-in-one Machine | Up to 100Kg | All-in-one | 16 | |
| MY-01RD-36L | All-in-one Machine | Up to 250Kg | All-in-one | 36 | |
| MY-03RD-60L | All-in-one Machine | Up to 400Kg | All-in-one | 60 | |
| MY-03RD | 1 Unit + 1 Drying Room | Up to 700Kg | 3200*2190*2200 | 8 | 128 |
| MY-06RD | 1 Unit + 1 Drying Room | Up to 1300Kg | 6150*2190*2200 | 14 | 224 |
| MY-12RD | 1 Unit + 1 Drying Room | Up to 2000Kg | 6350*3230*2200 | 20 | 320 |
| MY-15RD | 1 Unit + 1 Drying Room | Up to 2200Kg | 6350*3230*2200 | 20 | 320 |
| MY-03RD (Double) | 2 Units + 1 Drying Room | Up to 1700Kg | 7050*2190*2200 | 16 | 256 |
| MY-06RD (Double) | 2 Units + 1 Drying Room | Up to 2500Kg | 10100*2190*2200 | 24 | 384 |
| MY-12RD (Double) | 2 Units + 1 Drying Room | Up to 4400Kg | 11860*3230*2200 | 40 | 640 |
| MY-15RD (Double) | 2 Units + 1 Drying Room | Up to 5200Kg | 11860*3230*2200 | 40 | 640 |

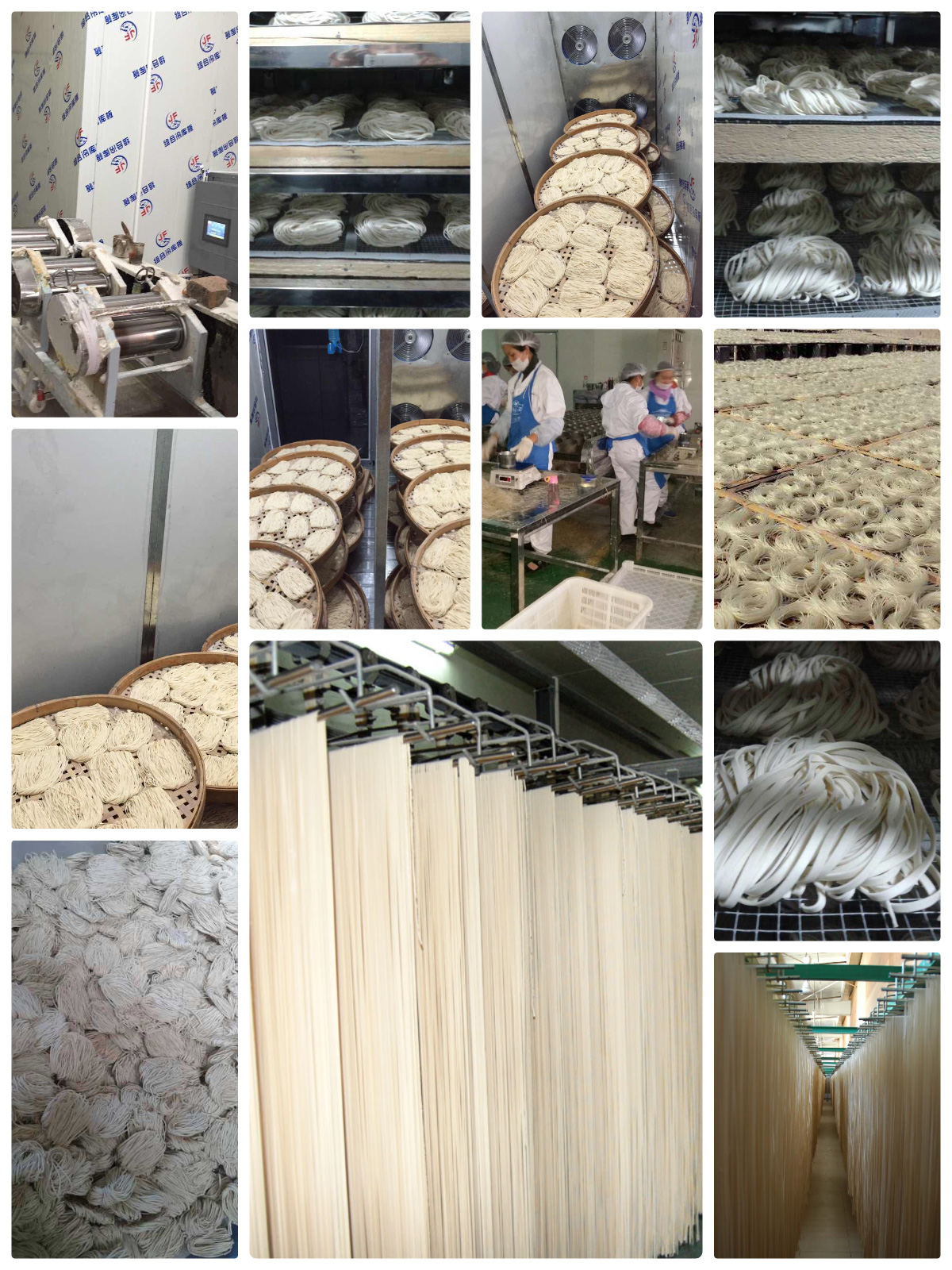

Our Projects:



Our Factory:

Production Processing:

Drying Machine Components:


Standard Working Modes:
- Typically 3 modes available:
- Drying Only
- Rapid temperature rise; unable to discharge moist air
- Drying + Dehumidify
- Chamber temperature rises while discharging moist air
- Cooling
- Temperature can drop to 10°C (minimum)
- Important Note:
- If temperature control becomes unstable, switch to Temperature & Humidity Mode.
- Drying Only
